What is magnetic drum separator? It’s one of those industrial workhorses that doesn’t get much attention – until you realize just how much heavy lifting it does behind the scenes. Think of it as a bouncer for your production line, except instead of checking IDs, it’s pulling out unwanted metal contaminants from your materials 24/7.
I first encountered these bad boys when I was touring a recycling facility back in 2019. The plant manager showed me this massive rotating drum that was literally plucking metal pieces out of a stream of crushed materials like magic. Pretty cool stuff.
In this post, as a professional magnetic drum manufacturer, I will share everything about magnetic drum separators.
Table of Contents
What is a Magnetic Drum Separator

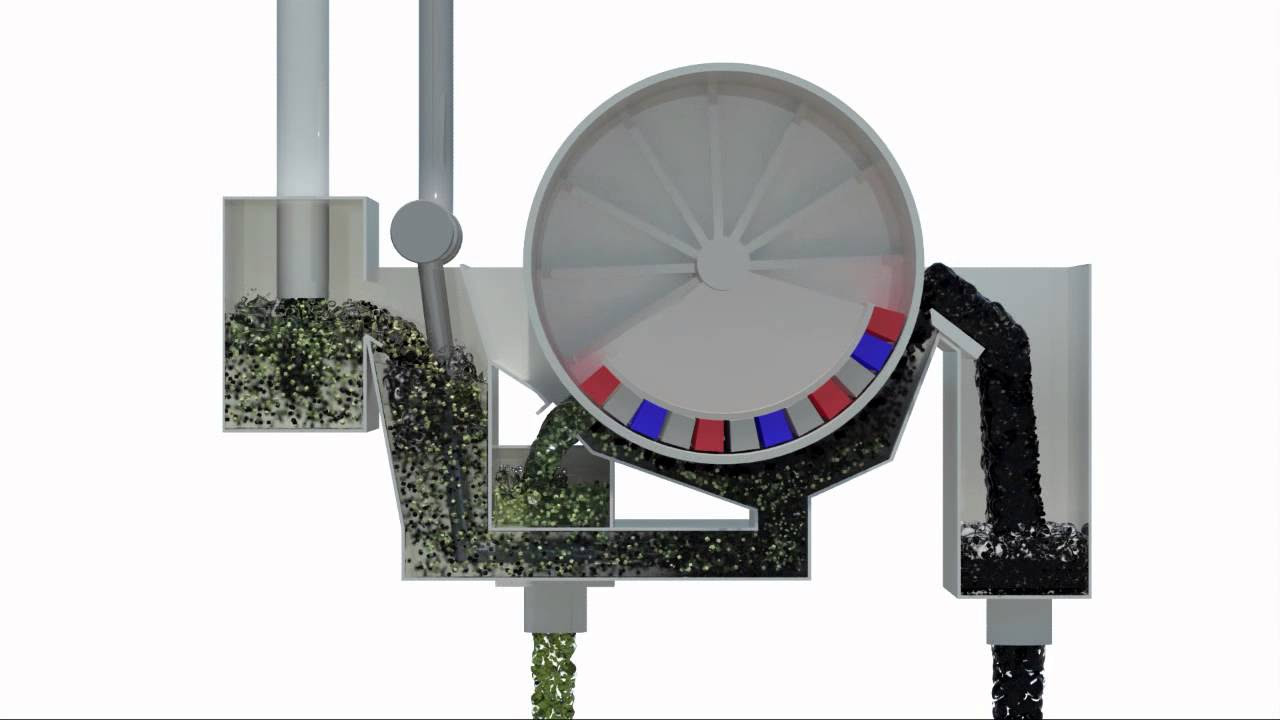

A magnetic drum separator is a machine used to automatically and continuously remove ferrous (iron) contaminants from dry bulk materials (powders, granules) or slurries. These contaminants include nuts, bolts, and metal fines. The material flows over the drum, and magnetic particles stick to the shell until they pass the magnetic field. Then, they fall off and are collected, while non-magnetic materials continue onward.
The Basics: How Magnetic Drum Separators Actually Work
Here’s the deal:
A magnetic drum separator uses powerful magnets (either permanent or electromagnetic) housed inside a rotating shell to attract and remove ferrous materials from whatever you’re processing. The contaminated material flows over the drum, magnetic particles stick to the shell, and clean material continues on its merry way.
Simple? Yes. Effective? Absolutely.
The best part? This whole process is automatic and continuous. No stopping to manually pick out metal bits. No shutting down your line every few hours. Just non-stop magnetic separation.
Breaking Down the Components
Let me walk you through what makes these separators tick:
The Rotating Drum
This is the star of the show – a non-magnetic shell (usually stainless steel or manganese) that rotates around the stationary magnet inside. Drum diameters typically range from 12 inches to a whopping 6 feet, depending on your needs.
The Magnetic System
Inside that rotating shell sits the real muscle – either:
- Permanent magnets (usually rare earth or ceramic/ferrite)
- Electromagnets (for when you need serious pulling power)
These can generate magnetic fields anywhere from 800 to 15,000 Gauss. To put that in perspective, a typical refrigerator magnet is about 50 Gauss. Yeah, these things don’t mess around.
The Feed System
Material enters at the top of the drum through a vibratory feeder or conveyor. The key here is maintaining a consistent, uniform flow. Too fast and you’ll miss contaminants. Too slow and you’re wasting time.
The Discharge System
This is where the magic happens. As the drum rotates:
- Ferrous materials stick to the drum surface
- They’re carried around past the magnetic field
- Once outside the field, they fall into a separate collection bin
- Clean material flows straight through to your product stream
Types of Magnetic Drum Separators (And When to Use Each)
Not all drum separators are created equal. Here’s what you need to know:
Dry Drum Separators
These are your go-to for free-flowing powders and granules. I’ve seen them work wonders in:
- Plastic recycling plants
- Food processing facilities
- Mining operations
- Chemical production
They’re relatively simple to maintain and can handle high volumes without breaking a sweat.
Wet Drum Separators
When you’re dealing with slurries or wet materials, these are your best friends. They offer:
- Higher recovery rates for fine magnetic particles
- Better separation efficiency
- Ideal for mineral processing and mining applications
The trade-off? They’re more complex and require careful maintenance of the liquid system.
Permanent vs. Electromagnetic
Here’s how I break it down:
Permanent magnetic drums:
- No power required (save on electricity bills!)
- Lower maintenance
- Can’t adjust the magnetic field strength
- Perfect for consistent applications
Electromagnetic drums:
- Adjustable field strength
- Better for heavy-duty applications
- Higher operating costs
- Need backup power systems
Real-World Applications That’ll Blow Your Mind
Let me share some killer applications I’ve come across:
Mining and Mineral Processing
These separators are absolute workhorses in mining operations. They’re used for:
- Magnetite recovery in heavy media circuits
- Removing tramp iron from ore streams
- Concentrating magnetic minerals
One mining operation I visited was recovering 98% of their magnetite using a series of wet drum separators. That’s serious efficiency.
Food Processing
This one’s huge for food safety. Drum separators protect against:
- Metal fragments from processing equipment
- Nuts and bolts that somehow find their way in
- Fine metal particles that could contaminate products
Recycling Operations
In recycling, these separators are essential for:
- Extracting ferrous metals from mixed waste streams
- Cleaning plastic regrind
- Processing electronic waste
- Separating metals in auto shredding operations
Bulk Material Handling
Whether it’s coal, sand, or agricultural products, drum separators keep production lines running by removing:
- Conveyor belt fragments
- Broken machinery parts
- Random metal contamination
The Technical Stuff (Without Getting Too Nerdy)
Let’s talk specs for a minute.
Modern magnetic drum separators can handle:
- Processing capacities from 1 to 220 tons per hour
- Particle sizes from fine powders to 12-inch chunks
- Belt speeds from 50 to 400 feet per minute
The magnetic field configuration matters too. You’ve got:
- Radial pole designs: Great for orienting long pieces (like rebar) along the drum width
- Axial pole designs: Better for producing high-grade magnetic concentrates
Installation Tips That’ll Save You Headaches
After seeing dozens of installations, here’s what works:
- Get the feed rate right: Too much material overwhelms the separator. Too little wastes capacity.
- Position matters: Install at natural transfer points to minimize extra equipment.
- Size it properly: Going too small to save money always backfires. Trust me on this one.
- Plan for maintenance: Leave space around the unit for easy access.
- Consider your discharge: Make sure you’ve got a plan for the separated ferrous material.
Common Mistakes (And How to Avoid Them)
I’ve seen people mess this up more times than I can count:
Mistake #1: Ignoring Material Characteristics
Not all materials behave the same way. Wet, sticky materials need different handling than dry powders. Know your material inside and out.
Mistake #2: Skimping on Magnet Strength
“But the cheaper model should work fine, right?” Wrong. Undersized magnets mean contamination gets through. Period.
Mistake #3: Poor Feed Distribution
If material isn’t spread evenly across the drum width, you’re not using your separator efficiently. Invest in proper feed systems.
Mistake #4: Neglecting Maintenance
These are tough machines, but they’re not indestructible. Regular cleaning and inspection prevents costly downtime.
The ROI Question Everyone Asks
“Okay, but what’s this going to cost me?”
Here’s the thing – drum separators typically pay for themselves within 6-12 months through:
- Reduced equipment damage downstream
- Higher product purity (and prices)
- Less manual sorting labor
- Fewer product recalls or rejections
One food processor I worked with saved $200,000 in the first year just from preventing equipment damage.
Future Trends in Magnetic Separation
The industry isn’t standing still. Here’s what’s coming:
Stronger Magnets
Rare earth magnet technology keeps improving. We’re seeing field strengths that were impossible just a few years ago.
Smart Separators
IoT integration means real-time monitoring of:
- Contamination levels
- Separator performance
- Predictive maintenance alerts
Hybrid Systems
Combining magnetic separation with other technologies (like eddy current separators) for better overall results.
Making the Right Choice for Your Operation
Here’s my advice:
- Start with your needs: What contamination are you dealing with? How much material do you process?
- Consider your constraints: Space, power availability, budget, maintenance capabilities.
- Think long-term: A quality separator lasts 20+ years. Don’t just look at upfront costs.
- Get expert input: Talk to manufacturers and users in similar applications.
The Bottom Line
What is magnetic drum separator? It’s your first line of defense against ferrous contamination. Whether you’re protecting expensive equipment, ensuring product purity, or recovering valuable materials, these workhorses deliver results day in and day out.
The key is matching the right separator to your specific application. Get that right, and you’ll wonder how you ever operated without one.
