Precision-machined and reliable magnetic chucks solution
Our custom-produced magnetic chucks provide precise clamping solutions, ensuring superior stability and accuracy in your machining operations. I will unite the factory to manufacture rectangular and circular permanent magnetic chucks, electromagnetic release chucks and Sine Magnetic Chucks in various forms of Magnetic chucks.
Fully customizable magnetic chucks manufacturing
Circular Magnetic Chuck Diameter & Pole Pitch
Flexible custom diameter and pole pitch designs are available for circular magnetic chucks to meet specific machining requirements.
Rectangular magnetic chuck dimensions
Rectangular magnetic chucks are available with custom length, width and pole pitch, providing a variety of options for a variety of workpieces and applications.
Electromagnetic Chuck Pole Block Size
For electromagnetic magnetic chucks, we offer tailored pole block sizes to ensure optimal performance based on your machine's requirements.
Pole Distance Design
Starting from customer needs, the pole pitch of the magnetic chuck is adjusted during the production process to meet the clamping force and accuracy of the actual application.
Sine Magnetic Chuck Design for Angled Workpieces
Sine magnetic chucks are specially designed to hold workpieces at precise angles, ensuring accurate machining and grinding on inclined or angled surfaces.
Holding Force Customization
We offer custom holding force for all types of magnetic chucks, providing secure clamping to meet our customers' workload and precision requirements.
Choose us for your custom magnetic chuck for efficient processing
We not only produce simple conventional magnetic suction cups, but most importantly, we can tailor solutions according to the unique needs of our customers. We firmly believe that accuracy and reliability cannot be compromised in precision machining processes.
We have a fully integrated supply chain to ensure quality and cost-effectiveness with comprehensive and flexible manufacturing capabilities. Whether you need round, rectangular or special sine table magnetic chucks, with more than 20 years of expertise in the magnetic products industry, our dedicated team of engineers and experts will work hand in hand with you to ensure that every detail of the magnetic chuck meets your specific requirements.
Permanent magnetic chucks
-
-
-
Magnetic Chuck

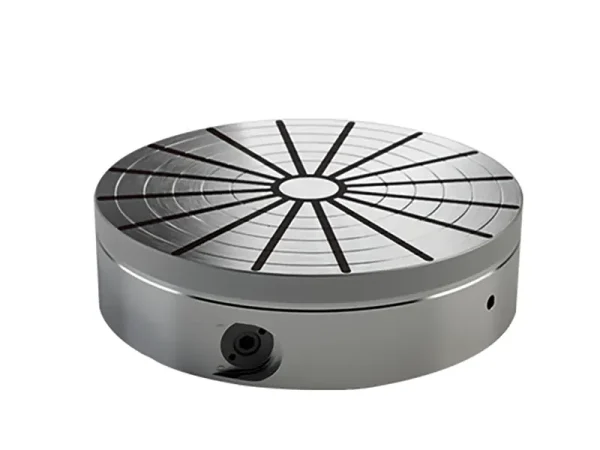

Parallel Pole Circular Grinding Rotary Magnetic Chuck
-
Magnetic Chuck

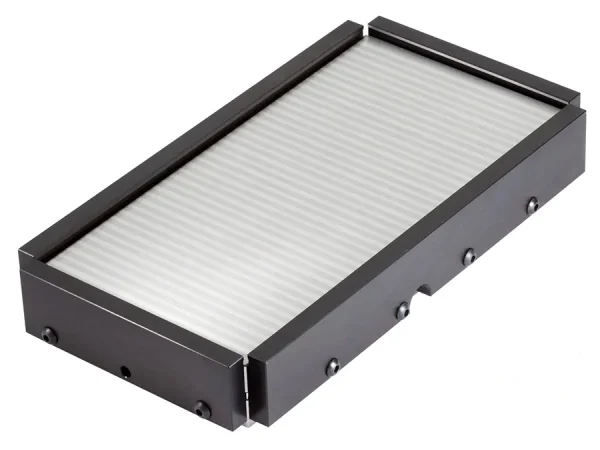

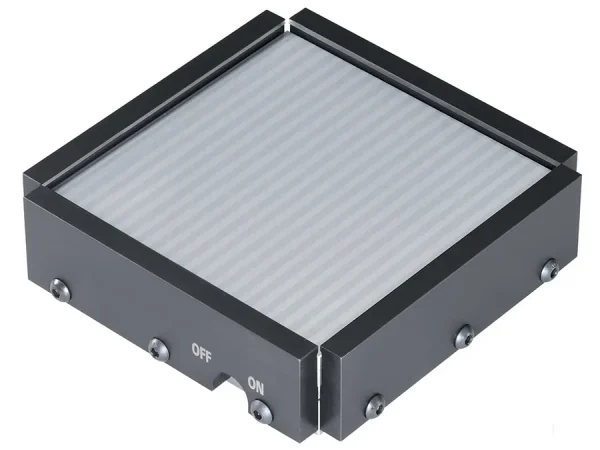

Square Hard Milling Permanent Magnetic Chuck
-
Magnetic Chuck
Circular turning permanent magnetic chuck
-
Choose Osencmag to provide reliable magnetic chucks for your precision machining.
Product quality assurance
We ensure that the manufacturing standards of our permanent and electromagnetic Magnetic Chucks are always consistent and undergo strict quality inspections throughout the production process to guarantee optimal performance and durability.
Competitive pricing
By leveraging our large network of trusted partners, we can offer competitive pricing without compromising quality, making bulk purchases and custom orders more cost-effective.
Fast lead times
The complete supply chain and our streamlined production processes guarantee fast turnaround times for magnetic chucks, meeting tight deadlines and maintaining the highest quality standards.
Tailor-made solutions
Our professional team provides fully customizable manufacturing solutions for magnetic chucks, including overall dimensions, pole pitch, holding force and design features to ensure compliance with customer-specific processing requirements.
Expert technical support
We provide professional technical support and consulting services to help you get effective guidance in the process of customizing various magnetic chuck types to optimize your processing performance.
Worldwide shipping
From secure packaging to selecting reliable international logistics, we ensure the timely and safe transportation of all magnetic chucks. Customized packaging is available when necessary to meet the needs of brand customers.

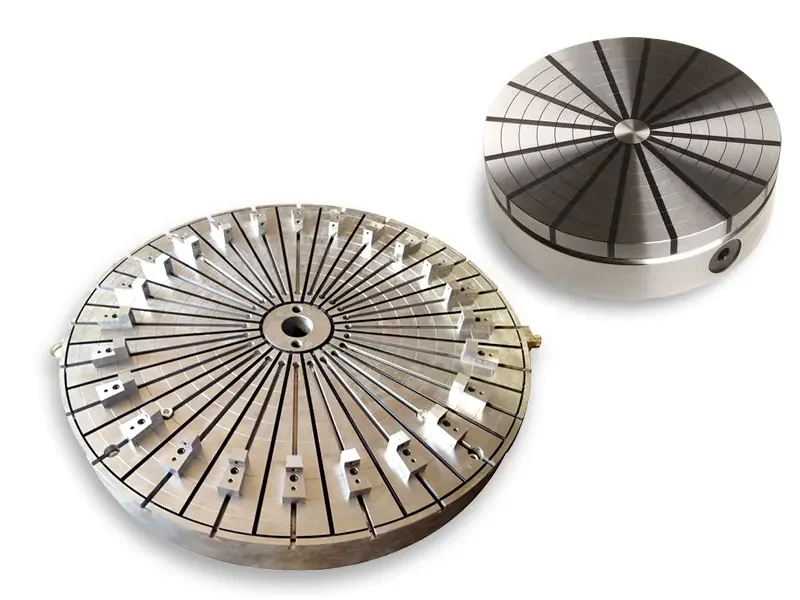

What is A Magnetic Chuck?
A magnetic chuck is a workpiece holding machine that uses magnetic force to replace vises, mechanical clamps and fixtures to hold workpieces during processing such as grinding, milling or turning. It has gradually replaced traditional mechanical clamping systems, making the process of installing machined parts faster, cleaner and more reliable. Allowing us to focus on the accuracy of machining without worrying about workpiece instability.
How do magnetic chucks work?
The magnetic chuck uses the principle of magnetism to keep the workpiece in the correct position during the work process. The chuck itself is equipped with a set of strong magnets or an electromagnetic system, depending on the type (permanent or electromagnetic). These magnets generate a magnetic field, and since the poles of the ferrous part are opposite to the polarity of the magnet, they attract each other. When the magnetic field is activated, it can be held in place by creating a polarity for the ferrous work material connecting its south and north poles, without any mechanical clamping.
- With a permanent magnetic chuck, the magnet inside the chuck always has a constant magnetic field, but its magnetic flux is locked inside the chuck when closed.
- For electromagnetic chucks, you can activate the magnetic chuck by turning the current on or off, and electromagnetic chucks can also control the magnetic field strength, providing more flexibility for workpieces of different sizes and shapes. Amplifying and controlling the magnetic flux is the key to applying magnetic chucks to metalworking operations.
When we need to fix the workpiece on the chuck table, just open the chuck and the magnet will align with the top plate. Magnetic flux will flow across the panel, and when the iron workpiece is placed on top, it will be locked by the magnetic flux. No physical pressure is applied to the workpiece material.
What are the advantages of using magnetic chuck?
There are many ways to hold steel workpieces during machining, such as carriage bolts, T-nuts, vise clamps, etc. But these external clamping tools have certain limitations to a greater or lesser extent. Using magnetic clamps has distinct advantages:
Reduce operational time:
Traditional clamping methods often require extensive, time-consuming adjustments. With magnetic chucks, instant magnetic clamping sets up workpieces in seconds. When processing multiple parts or when workpieces need to be changed quickly, feed rates can be increased by more than 3 times.
Versatile Operation:
Magnetic chucks can accommodate a wide range of workpiece sizes, making them ideal for a wide range of manufacturing functions: turning, grinding, palletizing, rotating and indexing, 4- and 5-axis, normal and heavy drilling, conventional milling, hard milling, wire cutting, EDM machines.
No interference:
Unlike traditional clamping, the magnetic chuck does not interfere with the workpiece and tools on the operating table, leaving more space for precision machining. Physical contact with the material is eliminated, ensuring there is no risk of damage or marring the workpiece surface.
Improve accuracy and precision:
Magnetic chucks ensure that your workpiece remains 100% aligned during machining, reducing the possibility of deformation, vibration or movement. Guarantee the tolerance range of the finished product and ensure higher precision.
Reduce risk of damage to workpieces:
Reduce the risk of workpiece deformation or surface damage with the evenly distributed magnetic clamping force of the magnetic chuck. This is especially important when machining high-value materials or precision parts that require high-quality surface treatment.
Long-term cost-effectiveness:
While magnetic chucks have a slightly higher initial investment, over time they can lead to cost savings by reducing installation time and increasing productivity. Additionally, the need for conventional consumable fixtures is eliminated, reducing additional expense.
Keep it tidy:
Magnetic chucks do not involve physical clamping, so there is no need for oil, grease and other substances that could contaminate the workspace or workpiece.
Flexible adsorption:
When clamping, all 5 sides of the workpiece can be contacted in one setup, eliminating the need to stop and reposition, increasing work flexibility.
Powerful Operational Protection:
Magnetic chucks offer a universal clamping solution for workpieces of all sizes. Our magnetic chucks are simple to operate and highly reliable with permanent, electro-permanent and electromagnetic options, ensuring consistent clamping at all times.
Application of magnetic chuck.
Precision Grinding
Magnetic chucks for grinding are used to hold workpieces during flat and cylindrical grinding. It ensures stable clamping of ferromagnetic workpieces, prevents deformation during high-speed grinding, and ensures parallelism, flatness and high surface finish of precision grinding processes.
Electrical Discharge Machining (EDM)
For EDM processes, magnetic chucks provide a stable, non-intrusive clamping method. Its precise clamping capabilities enable complex and detailed material processing without distorting delicate workpieces, which is critical in high-precision, small-scale manufacturing tasks.
Milling Operations
In milling operations, magnetic chucks easily mount ferrous materials, improve accuracy, and reduce setup time. Uniform and ultra-strong magnetic force distribution prevents workpiece displacement, ensuring stable, accurate cutting even on complex shapes and large parts.
Turning and lathe work
Magnetic chucks are ideal for holding large diameter and short length workpieces during lathe turning operations. Electromagnetic chucks allow the addition of additional chuck blocks as needed, for more consistent and accurate machining.
Sheet Metal Processing
Magnetic chucks are also used in sheet metal applications where thin sheets of metal need to be securely held. They prevent materials from warping or shifting during cutting, bending or welding, resulting in more consistent, precise results.
Application of magnetic chuck.
Magnetic chucks are available in round, square and rectangular shapes, each with specific functional benefits.
Round Magnetic Chucks
Round magnetic chucks are designed for use in machining processes where the workpiece must be rotated (e.g. lathe machining, grinding and polishing operations). They are capable of holding cylindrical or round workpieces such as discs, shafts and other rotationally symmetrical components during high-speed operations.
Rectangular Magnetic Chucks
This magnetic chuck is rectangular and flat and is very versatile. Its flat rectangular shape provides a large contact surface and is primarily used in a variety of metalworking operations such as grinding, milling and EDM.
Square Magnetic Chucks
Square magnetic chucks are similar to rectangular magnetic chuck types and are designed for precise clamping of square or angled workpieces. Its symmetrical design provides consistent magnetic force in all directions, making it particularly suitable for applications that require uniform clamping in all directions.
