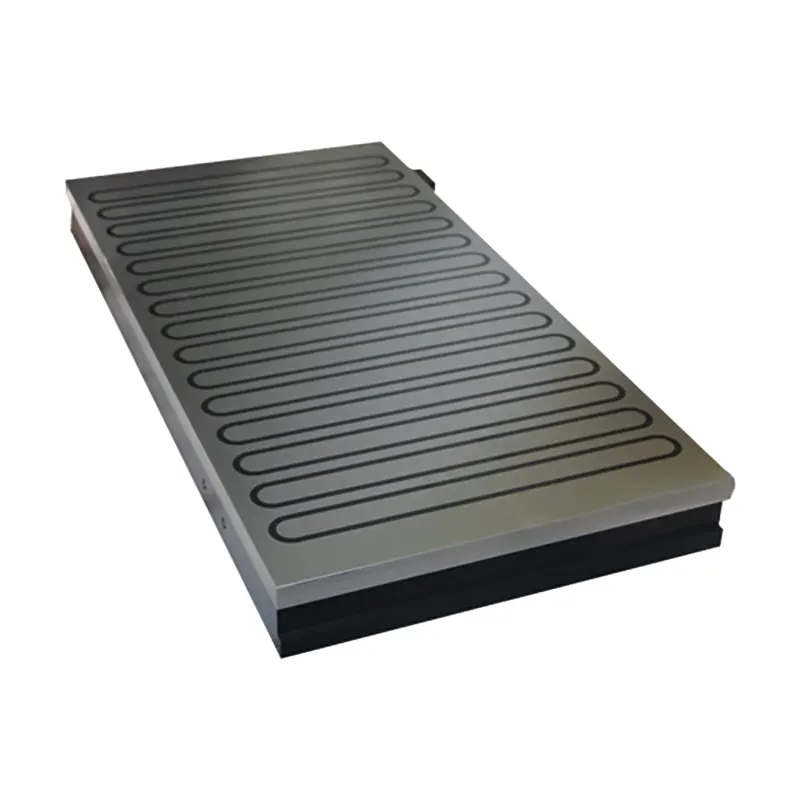

Oval Poles grinding square electromagnetic chuck

  • Type: Square Electromagnetic Chuck with Oval Poles

  • Design: High-performance electromagnetic system for precision grinding

  • Size: Customizable length, width, and pole pitch

  • Pole Structure: Oval poles for enhanced magnetic clamping force

  • Material: High-quality steel construction with a waterproof, wear-resistant surface

  • Control System: Compatible with variable magnetic force controllers

  • Applications: Ideal for precision grinding, surface grinding, and CNC machining

  • Customization: Fully customizable pole pitch, pole layout, and overall dimensions

  • Advantages: Uniform holding force, minimal heat generation, and stable clamping performance

The Oval Poles Grinding Square Electromagnetic Chuck is a high-precision clamping solution designed for surface grinding and CNC machining. Its oval pole design enhances the magnetic force distribution, ensuring reliable and uniform workpiece clamping. This chuck is engineered to deliver high holding force with minimal heat generation, making it ideal for precision applications that require stable and secure clamping.

Customizable Dimensions & Pole Pitch

To meet different machining requirements, this electromagnetic chuck offers customizable length, width, and pole pitch. Whether you need a larger working surface or a specific pole configuration, we provide fully flexible manufacturing options to ensure compatibility with your specific application.

Advanced Magnetic Performance

The oval pole structure creates a strong yet even magnetic field, reducing the risk of workpiece deformation and ensuring excellent surface finish quality. The electromagnetic system allows for variable clamping force adjustment, making it suitable for delicate machining operations as well as heavy-duty grinding.

Durability & High-Quality Construction

Crafted from high-grade steel, the chuck features a wear-resistant and waterproof surface, ensuring long-lasting durability in industrial environments. The low heat generation characteristic further enhances performance by minimizing thermal expansion, which can affect precision during long machining cycles.

Important parameters:

  • Application: Grinding
  • Technology: Electromagnet
  • Holding force: 130 N/cm2
  • Min. workpiece size: 22 x 144 x 48 mm
  • Poles: Oval
  • Pole pitch: T48 mm
  • Regrinding limit: 8 mm
  • Power supply cable length: 6 m
  • Power Supply: Standard 110V DC electromagnetic power source
  • Heat Generation: Low thermal expansion technology
  • Surface Material: High-grade steel, waterproof & wear-resistant

Key Features & Customization Options

  • Oval Pole Design: Provides superior holding power with optimized force distribution.

  • Customizable Size & Pole Pitch: Adaptable length, width, and pole spacing to fit your machinery.

  • Stable & Uniform Magnetic Force: Ensures secure clamping without damaging delicate workpieces.

  • Low Heat Generation: Reduces thermal expansion, maintaining high machining precision.

  • Wear-Resistant Surface: Built to withstand industrial grinding conditions.

  • Electromagnetic Control Compatibility: Works with adjustable magnetic force controllers for optimized performance.

Oval Poles grinding square electromagnetic chuck design drawing

Model W (mm) L (mm) H (mm) Weight (kg)
OSENC200600 200 600 70 60
OSENC2001000 200 1000 80 116
OSENC2501000 250 1000 79 137
OSENC300500 300 500 70 76
OSENC300600 300 600 70 91
OSENC300800 300 800 70 122
OSENC3001000 300 1000 80 174
OSENC3001500 300 1500 80 260
OSENC400600 400 600 70 122
OSENC400700 400 700 70 141
OSENC400800 400 900 70 162
OSENC6001000 600 1000 80 347
OSENC6001500 600 1500 80 533
OSENC6001500 600 1500 80 689

*The special size and style of the magnetic suction cup can be customized as needed.
